Black Box ToolKit v2

Black Box ToolKit v2

Replacement Modules

Replacement 25-way ASC/TTL breakout board

Allows for up to 2 TTL out, 2 TTL in and 4 ASC connections to your own equipment. Also includes 4 additional +5v/grounds.



Replacement opto-detector sensor and cable

These opto-detector leads can be used with either the BBTK or external opto-detector modules.

Note: BBTK version 1 microphones, sounders, opto-detectors, external opto-detector modules and response pad should not be used with the new version 2.



Active Switch Closure/TTL lead

2 wire Active Switch Closure leads (1m) can be attached to your own response devices to simulate button/key presses. Each lead can be attached to one button/key. TTL leads (1m) are identical to ASC leads and carry +5v and 0v through 2 wires.

By default leads are bare ended at both ends. If you require termination specific for your own equipment e.g. BNC, jack, terminal block etc. or longer lengths please contact us for a custom lead quotation.

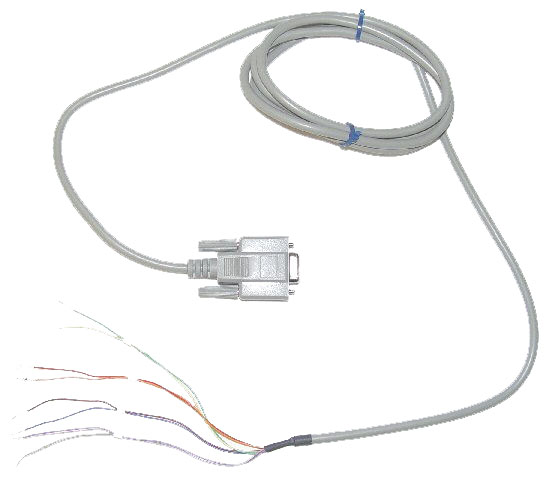

Replacement Active Switch Closure lead for the BBTK Response Pad

The ASC lead for the BBTK can be used to trigger between one and four buttons.

Replacement USB host lead

Used for connecting the base kit to the Host PC.

Replacement 25-way ASC/TTL breakout board lead

Used for connecting the breakout board to the rear of the BBTK.

Replacement Switch Mode PSU (suitable for international use)

Grounded PSU used for powering the BBTK.
