The Black Box ToolKit:

Products

Black Box ToolKit v2

Black Box ToolKit v2

Accessories

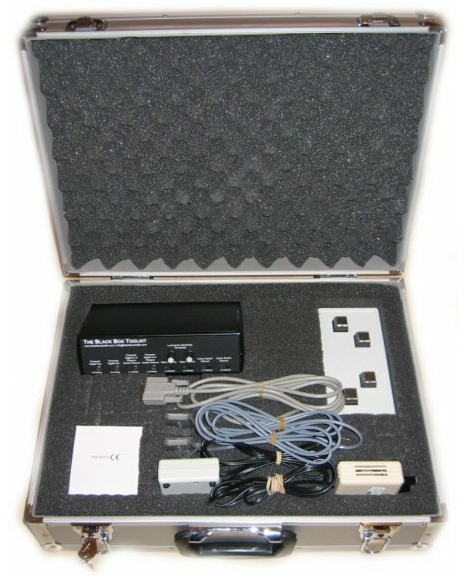

Carrying Case

High quality aluminium carrying case

 Protects your BBTK and additional modules from accidental damage.

We strongly recommend you consider purchasing the aluminium carrying case shown to help protect the toolkit and additional modules.



Black Box Toolkit USB Response Pad

It doesn't matter which experiment generator you use to run your computer-based Psychology experiments the new Black Box ToolKit USB response pad guarantees millisecond accurate response times*

Simply plug in to a USB port on your PC/Mac/Linux system and our response box will appear as a second keyboard. Press a button and a standard keystroke will be sent to your experiment. No need for drivers, no need to recode! Works out of the box with E-Prime, SuperLab, Presentation, Inquisit, PsychoPy or any other software that can accept standard keyboard responses.

Finished in attractive carbon fibre effect plastic our enclosure houses up to 8 buttons in a range of colours and locations.

Make millisecond accurate response timing in your Psychology experiments one less thing to worry about!

16 Channel TTL Breakout Board

Breakout board with separate signal processor/CPU provides an additional 16 high speed multipurpose TTL lines (8 input/8 output). Ideal for event marking, synchronization or TTL based response devices.

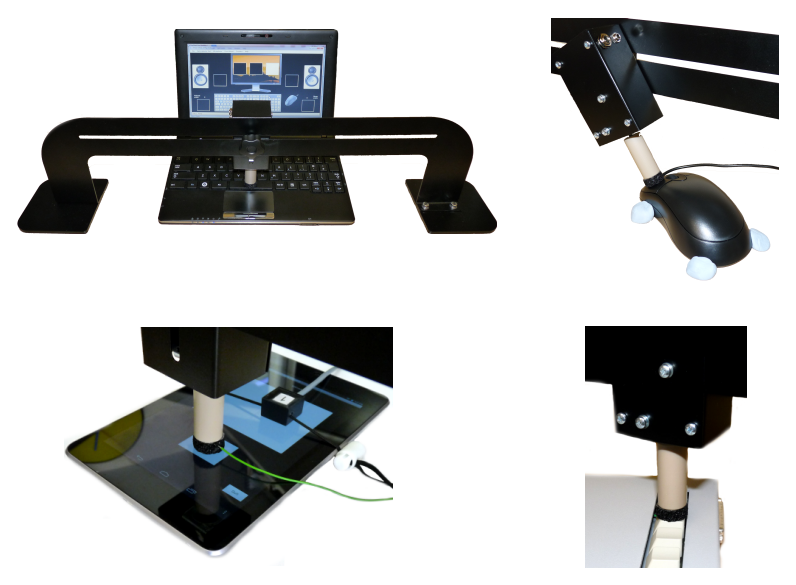

Robotic Response Key Actuator

Press keys on your own response devices, e.g. laptop keys, response pads etc. with our robotic finger. Unobtrusive and noninvasive.

Can also be used to make responses on devices with either resistive or capacitive touch screens, e.g. Android tablets, iPads, iPhones or other touch screen devices etc.

API & SDK Guide

Printed documentation detailing our software API which allows you to control the BBTK from your own applications and decode timing data. The BBTK is controlled via a virtual serial COM port over a USB connection using simple four letter commands.

BBTK digital microphone

Up to two can be used simultaneously for monitoring for auditory stimulus (adjustable trigger threshold).

 Note: BBTK version 1 microphones, sounders, opto-detectors, external opto-detector modules and response pad should not be used with the new version 2.

BBTK digital tone generator

Up to two can be used simultaneously for triggering remote voice keys (adjustable for amplitude/volume).

Note: BBTK version 1 microphones, sounders, opto-detectors, external opto-detector modules and response pad should not be used with the new version 2.

click on the image to enlarge

click on the image to enlarge

click on the image to enlarge
