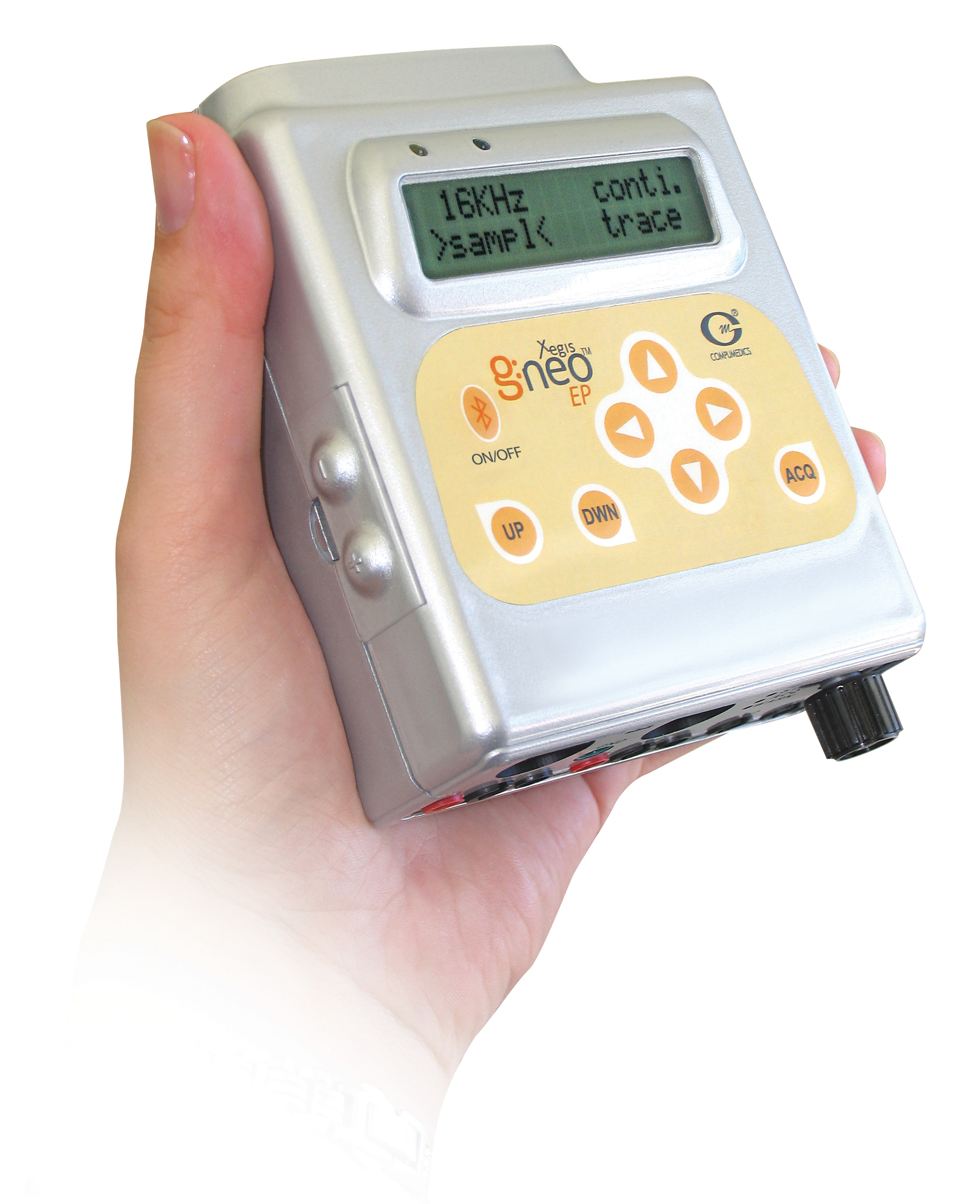

Xegis G:Neo 2Ch EMG/EP
On the move with the ultra-
Compumedics presents the Xegis G:Neo, the ultraportable EMG/EP system that delivers unparalleled versatility and productivity for the physician on the move.
Xegis G:Neo -
Ultra-
- Small footprint at only 9.5 x 11.5 x 3.5cm size, light weight at only 300 grams -
- 16 bit successive approximation Analog/Digital Conversion
- Sampling rate up to 65000 Hz for every channel
- Noise lower than 0.35 µVrms @ 10KHz
- Bandwidth from DC to 20000 Hz
- Cable power supply or via battery type “AA”
- Integrated Electric, Acoustic and visual-
LED stimulators - Additional channel for temperature probe
- 2 different inputs for every amplifier (DIN, TouchProof)
- LCD display and full control keypad on the headbox
USB connection to the Laptop Computer
- No need for external docking station
High efficiency EMG
- Unlimited needle EMG recording and playback
- Customizable protocols for every exam to streamline workflow
- Optimised for maximum flexibility for single fiber EMG
- Automatic report generation during exam execution
(WORD® compatible)
Perfect accuracy in Evoked Potentials
- Stimulation artifact free recording
- Fully adjustable rejection thresholds
- High quality acoustic and visual stimulations
- Advanced filters for better signal quality
- Complete control of pattern reversal
Complete custom setup of the acquisition protocols
Network integration with
- Centralized data storage
- SQL database -
interface to hospital database
Compatible with magnetic and laser stimulators
Full management of trigger IN/OUT
Operate with dedicated keypad and footpedal
Xegis Forté and Xegis G:Neo support the following tests:
EMG Tests
- Needle EMG, MUAP Quantitative Analysis, Triggered EMG
- Turns & Amplitude, Functional EMG (IPA combined with MUAP)
- Single Fibre, Stimulated SF (Jitter and Fibre Density), Macro EMG
- Motor Unit Number Estimation (MUNE)
- Motor and Sensitive Nerve Conduction Velocity
- F Wave, H Reflex, Repetitive Stimulation
- Collision test and Inching test
- Blink Reflex, Inhibitory Reflex, Jaw Jerk
- Symphatethic Skin Response (SSR), R-
R Interval Analysis - Motor Evoked Potentials (MEP) with integrated F Wave
- Configurable protocols for even more tests
EP Tests
- SEP: Somatosensory Evoked Potentials
- VEP: Visual Evoked Potentials -
Steady State too - AEP: Acoustic Evoked Potentials (Middle, Long Latency)
- BAEP: Brain Acoustic Evoked Potentials
- MEP: Motor Evoked Potentials
- LEP: Laser Evoked Potentials
- P300, MMN: Cognitive Evoked Potentials
- ERP – Event related potentials
