B-Alert X10 EEG System

10-Channel Wireless EEG Headset

The B-Alert X10 is the premiere solution for mobile EEG applications, delivering a balance of functionality and simplicity. The lightweight headset applies easily and remains comfortable for extended high quality recordings in any home, lab, or operational setting. The 9-channel combination of mid-line and lateral EEG sites -- plus the additional channel of ECG data -- allows for multiple analysis opportunities, as evidenced by numerous peer-reviewed publications. The B-Alert X10 is selected when users intend to use the B-Alert Cognitive State Metrics, when integrated with the SDK for brain computer interfaces, or when lower resoultion hemispherical/regional presentation of neuro pathway representation is required.

Product Features:

• 9 channels of high-quality EEG, plus 1 optional channel for ECG, EMG, or EOG (10 Channels @ 256Hz)
• Comfortable and non-intrusive; sets up in about 5 minutes
• Automated wireless impedance checks
• Bluetooth wireless signal transmission up to 10 meters
• 8+ hour rechargeable battery life
• On-board accelerometer to quantify head movement & position
• Data quality monitoring and feedback
• Multiple options for data synchronization
• Sizing to fit adolescent through adult heads
• SDK fully compatible with MatLab, EEGLab, and BCI2000



X10 Montage

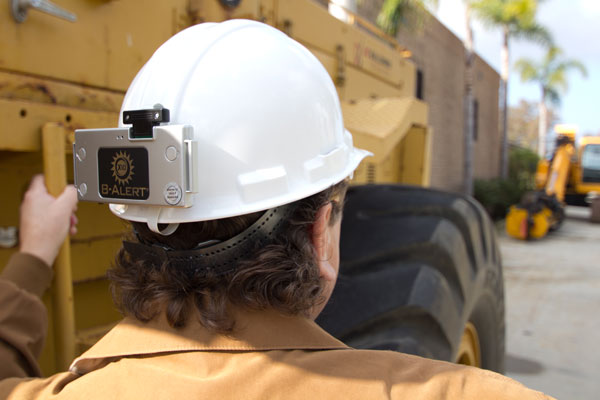

Integration options available

click on the image to enlarge
